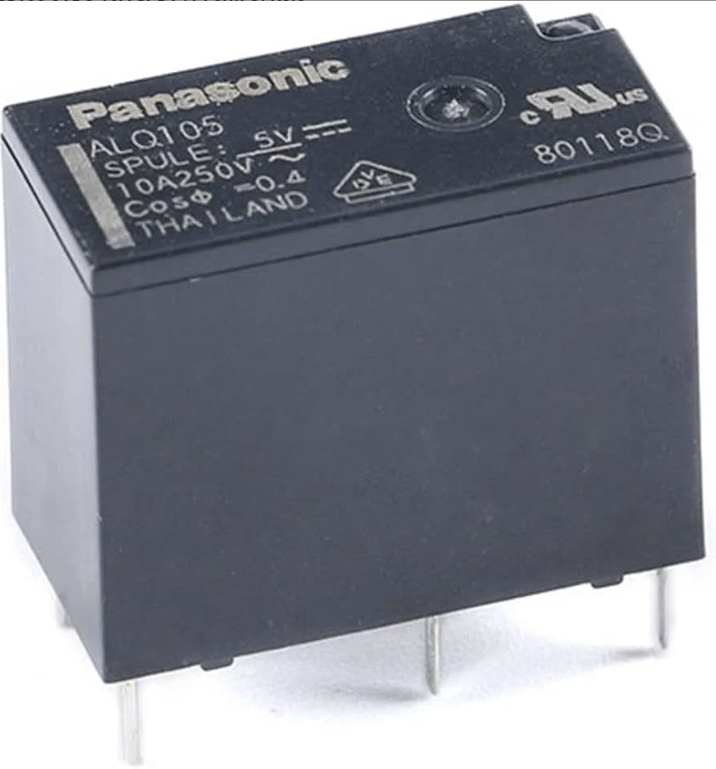

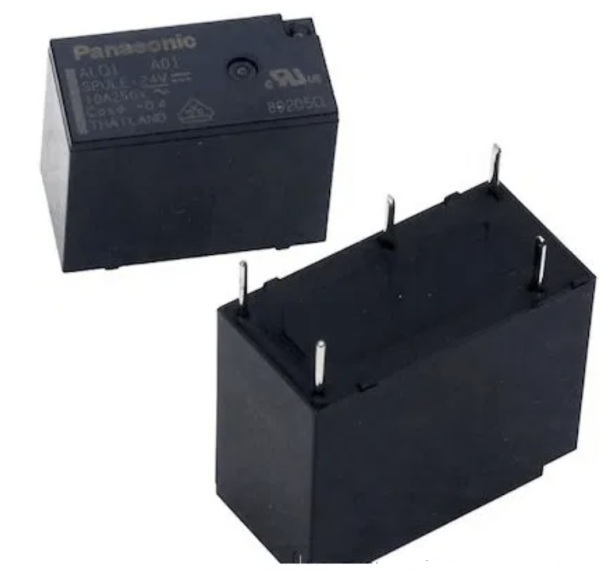

Panasonic – ALQ105 5V 10A 5Pin Röle
Ürün Fiyatı
34,79 TL KDV Dahil
* 3,25 TL den başlayan taksitlerle!
Sepete Ekle
| Ürün Özellikleri: | Tümünü Seç : | |
|---|---|---|
| Coil Current | 80mA | |
| Width | 10.00mm | |
| Packaging | TRAY | |
| Contact Form | SPDT (1 Form C) | |
| Series | ALQ | |
| Coil Power | 400mW | |
| Height | 15.60mm | |
| Relay Type | Relay Power Small | |
| Coil Type | Non Latching | |
| Contact Current (Max) | 10A | |
| Coil Voltage | 5VDC | |
| Operating Temperature | -40°C~+85°C | |
| Length | 20.00mm | |
| Rohs | ROHS | |
| Manufacturer | PANASONIC COMP. | |
| Mounting Type | THT | |
| Contact Current (Nom) | 5A | |
| Coil Resistance | 62.50 Ohms | |
| Contact Voltage | 125VAC/30VDC | |
| Number of Pins | 5 Pin |
Bu ürüne ilk yorumu siz yapın!
