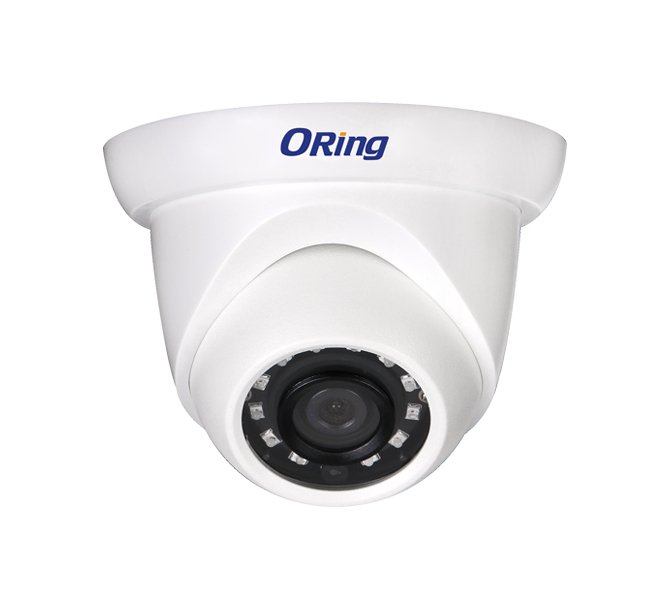

OR-D1325S-IR 2 MP IR Eyeball IP Kamera

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

12

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:104°/92°,V:55°/50°

Focus Control

Fixed

Close Focus Distance

0.6m(0.9m)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<5.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ108mm×84.9mm(4.25''x3.15'')

Net Weight

0.23Kg(0.51lb)

Gross Weight

0.387Kg(0.85lb)
