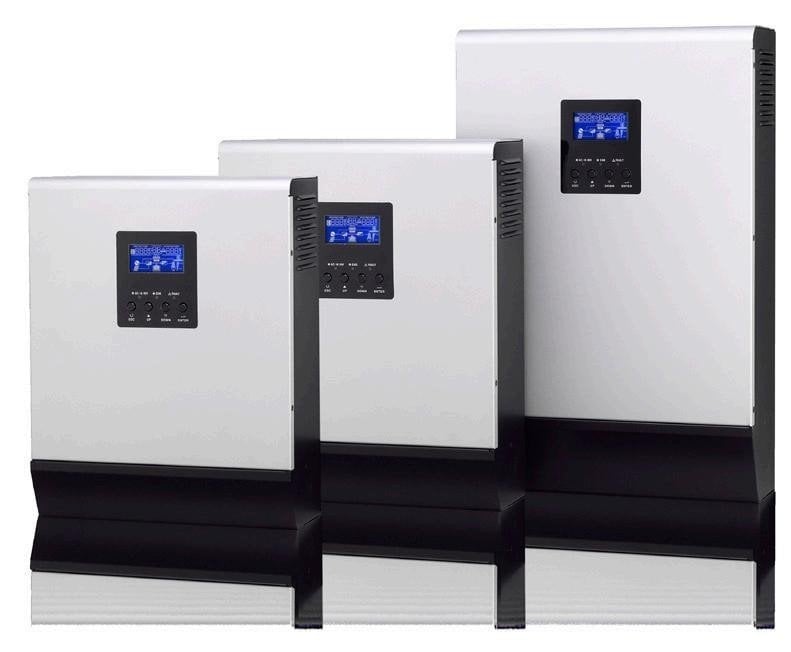

Linetech MKS 5KVA 5000VA 48V Akıllı Solar İnvertör
Paylaş

Linetech MKS 5KVA 5000VA 48V Akıllı Solar İnvertör

Kategori
Solar İnvertör
Marka
Linetech
Stok Kodu
MDL930039
Fiyat
30.651,72 TL + KDV
Ürün Fiyatı
36.782,07 TL KDV Dahil
* 3.432,99 TL den başlayan taksitlerle!
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz

Ayrıntılar

Model Axpert MKS
1K-24		 Axpert MKS
1K-48		 Axpert MKS
2K-24		 Axpert MKS
3K-24		 Axpert MKS
3KP-24		 Axpert MKS
3K-48		 Axpert MKS
4K-48		 Axpert MKS
5K-48		 Axpert MKS
5KP-24
RATED POWER

1000VA/ 1000W

 1000VA/ 1000W 2000VA/ 2000W 3000VA /3000W 3000VA/ 2400W

3000VA/ 3000W

 4000VA/ 4000W 5000VA/ 5000W

5000VA/ 4000W
Parallel Capability No No No No Yes, 9 units No Yes, 9 units Yes, 9 units Yes, 9 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90%-93% 93% 90% 93% 90%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 48 VDC 24 VDC 24 VDC 24 VDC 48 VDC 48 VDC 24 VDC
Floating Charge Voltage 27 VDC 54 VDC 27 VDC 27 VDC Default: 24 VDC, Max.: 30 VDC 54 VDC 54 VDC 54 VDC Max: 58 VDC (Optional 64 VDC, please check with sales) Default: 24 VDC, Max: 30 VDC
Overcharge Protection 31 VDC 62 VDC 31 VDC 31 VDC 30 VDC 62 VDC 60 VDC 60 VDC (Optional 66 VDC, please check with sales) 30 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600 W 900 W 600 W 600 W 1000W 900 W 4000W 2000W
MPPT Range @ Operating Voltage 30VDC~ 66VDC 60VDC~ 88VDC 30VDC ~ 66VDC 30VDC ~ 66VDC 30 VDC~80 VDC 60VDC ~ 88VDC 60VDC ~115VDC 30 VDC~115 VDC
Maximum PV Array Open Circuit Voltage 75VDC 102VDC 75VDC 75VDC 100 VDC 102VDC 145VDC 145 VDC
Maximum Solar Charge Current 25A 18A 25A 25A 40A 18A 80A 80A
Maximum AC Charge Current 20A 15A 30A 30A 60A 15A 60A 60A
Maximum Charge Current 45A 33A 55A 55A 100A 33A 140A 140A
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 120 x295 x385 120 x 295 x468 120 x 295 x 468 180 x 310 x 475
Net Weight (kgs) 6.8 7.0 7.4 7.5 7.4 12.5 13.5 12.5
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
* There are charging current selection only available for 230VAC system.
Product specifications are subject to change without further notice.




Model Axpert MKS
1K-24		 Axpert MKS
1K-48		 Axpert MKS
2K-24		 Axpert MKS
3K-24		 Axpert MKS
3K-48		 Axpert MKS
4K		 Axpert MKS
5K
RATED POWER 1000VA/800W 1000VA/1000W 2000VA/1600W 3000VA/2400W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90%-93% 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 48 VDC 24 VDC 24 VDC 48 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC 27 VDC 27 VDC 54 VDC 54 VDC
Overcharge Protection 31 VDC 62 VDC 31 VDC 31 VDC 62 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600 W 900 W 600 W 600 W 900 W 4000W
MPPT Range @ Operating Voltage 30VDC~ 66VDC 60VDC~ 88VDC 30VDC ~ 66VDC 30VDC ~ 66VDC 60VDC ~ 88VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 102VDC 75VDC 75VDC 102VDC 145VDC
Maximum Solar Charge Current 25A 18A 25A 25A 18A 80A
Maximum AC Charge Current 20A 15A 30A 30A 15A 60 A
Maximum Charge Current 25A 18A 30A 30A 18A 140A
AC charger and solar charger can’t work at the same time
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 140 x 295 x 468
Net Weight (kgs) 6.8 7.0 7.4 11
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
Model Axpert MKS
1K-24		 Axpert MKS
1K-48		 Axpert MKS
2K-24		 Axpert MKS
3K-24		 Axpert MKS
3K-48		 Axpert MKS
4K		 Axpert MKS
5K
RATED POWER 1000VA/800W 1000VA/1000W 2000VA/1600W 3000VA/2400W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90%-93% 93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 48 VDC 24 VDC 24 VDC 48 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC 27 VDC 27 VDC 54 VDC 54 VDC
Overcharge Protection 31 VDC 62 VDC 31 VDC 31 VDC 62 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600 W 900 W 600 W 600 W 900 W 4000W
MPPT Range @ Operating Voltage 30VDC~ 66VDC 60VDC~ 88VDC 30VDC ~ 66VDC 30VDC ~ 66VDC 60VDC ~ 88VDC 60VDC ~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 102VDC 75VDC 75VDC 102VDC 145VDC
Maximum Solar Charge Current 25A 18A 25A 25A 18A 80A
Maximum AC Charge Current 20A 15A 30A 30A 15A 60 A
Maximum Charge Current 25A 18A 30A 30A 18A 140A
AC charger and solar charger can’t work at the same time
Maximum Efficiency 98%
Standby Power Consumption 2 W
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 355 140 x 295 x 468
Net Weight (kgs) 6.8 7.0 7.4 11
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
