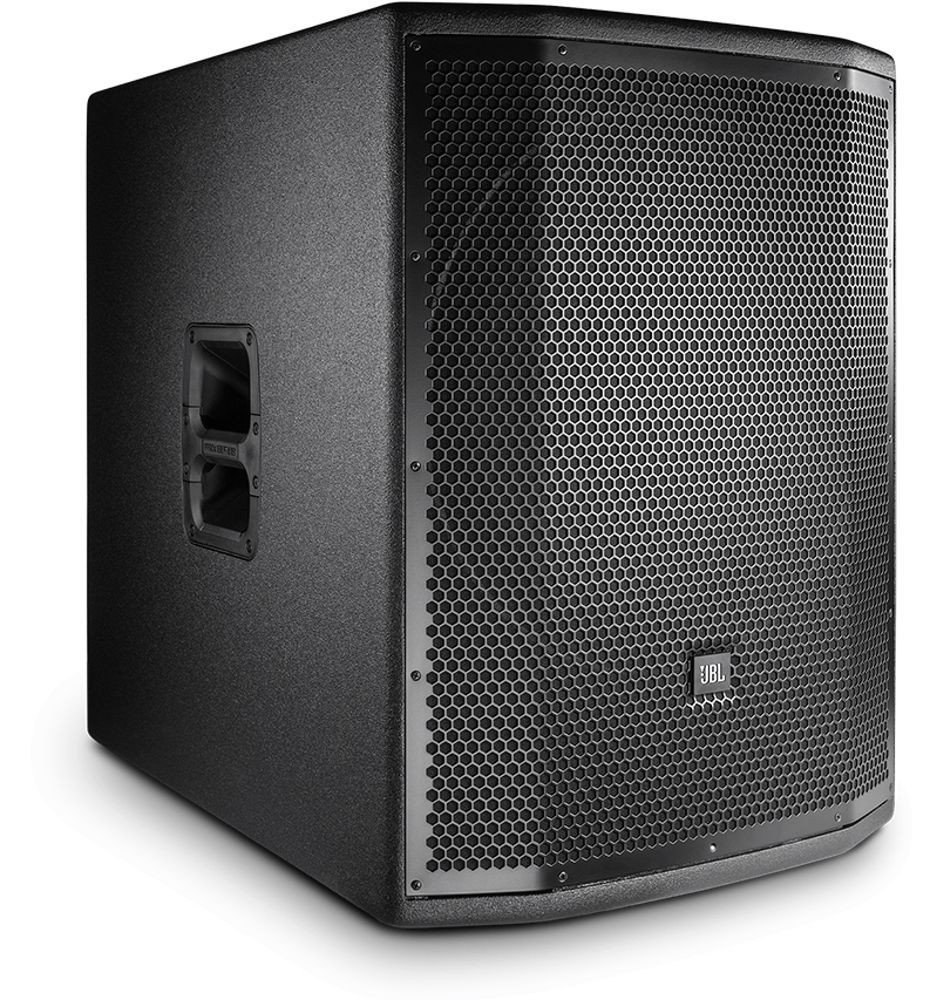

JBL PRX818XLFW 18'' Wi-Fi'lı 1500W Aktif Subwoofer
18” Self-Powered Extended Low-Frequency Subwoofer System with Wi-Fi
The JBL PRX818XLF is a self-powered extended low-frequency subwoofer system. Featuring a JBL 18-inch woofer powered by a 1500-watt class-D amplifier, PRX818XLF delivers incredible output in a lightweight and compact form factor.
Features
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive® transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
- Universal power supply for worldwide compatibility
- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
- Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
Applications
- The PRX815XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. Due to their rugged construction, they are perfect for AV rental inventories. With the integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer-mounted speaker poles.
- The PRX818XLF is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX818XLF is comprised of a powerful 2278G Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
- All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each
- The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
Downloads
| Size | ||||
Manuals |
||||
 PRX800 Quick Start Guide |
1.3 MB | |||
Compliances |
||||
| PRX800 Compliance |
143 KB | |||
Software |
||||
 PRX Connect |
||||
 PRX Connect |
||||
User Guides |
||||
| PRX800 User Guide |
1.79 MB | |||
Bim Objects |
||||
 BIM (Revit) Files |
12.4 MB | |||
Hi Res Images |
||||
| PRX818XLF Back |
7.25 MB | |||
| PRX818XLF Front No Grille |
2.42 MB | |||
| PRX818XLF Front |
5.49 MB | |||
Data Sheets |
||||
| PRX818XLF Sell Sheet |
818 KB | |||
| PRX818XLF Spec Sheet |
1.75 MB | |||
Install Guides |
||||
| PRX800 WiFi Setup Guide |
445 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Specifications
| System Type | Self Powered 18” subwoofer |
| Maximum SPL Output | 134 dB peak |
| Frequency Range (-10 dB) | 30 Hz - 103 Hz |
| Frequency Response (±3 dB) | 35 Hz – 87 Hz |
| Input Connectors | Two Balanced female XLR/ 1/4” combo connectors |
| Input Impedance | 20K Ohms (balanced) |
| Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready |
| Dynamic Control (Input) | dbx Type IV™ limiter circuit |
| System Low Pass | 80 Hz |
| Loop out Crossover Frequency | 80Hz Digital 24db/octave Linkwitz-Riley Filter |
| Design | Highly efficient Class-D amplifier |
| Power Rating | 1500W |
| AC power input | 100V - 240V ~ 50/60 Hz |
| LF Driver | 1 x JBL 2278G 460 mm (18 in) woofer |
| Enclosure | Rectangular, 18 mm, birch-poplar mix |
| Transport | 2 x injection molded handles with backing cup |
| Finish | Obsidian DuraFlex™ finish |
| Grille | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
| Dimensions (H x W x D) | 692 mm x 523 mm x 724 mm (27.26 in x 20.6 in x 28.5 in) |
| Net Weight | 36.28 kg (80.0 lb) |
| Gross Weight | 45.0 kg (100.0 lb) |
