JBL Pro CSS-1 S/T Kompakt İki Yollu 100V / 70V / 8-Ohm Hoparlör

Jbl CSS-1S/T 5.25'' 10W 2-Yollu 70/100V/8 ohm Hoparlör

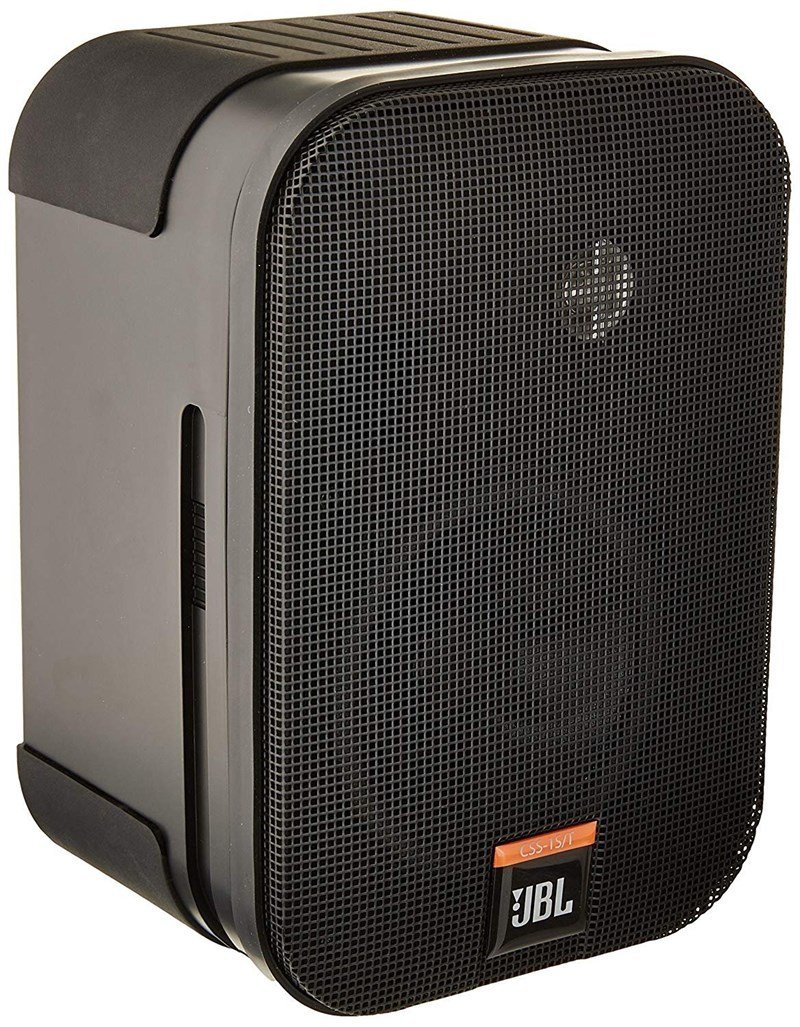

Compact Two-Way 100V/70V/8-Ohm Loudspeaker

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines

8 Ohm Direct Setting

Included Wall-Mounting Bracket

Professional Drivers and Network

Frequency Range (-10 dB)85 Hz – 18 kHz

Frequency Response (±3 dB)120 Hz – 16 kHz

Power Capacity60 Watts

Sensitivity86 dB SPL, 1W (2.83V) at 1m (3.3 ft)

Maximum SPL106 dB at 8 Ohm Direct setting;

96 dB at 10W setting

Nominal Coverage120ºH x 120ºV

Directivity Factor (Q)6.2

Directivity Index (DI)7.9 dB

Nominal Impedance8 ohms (in 8Ω DIRECT mode, selectable on back panel)

Transformer Taps10 W, 5 W (& 2.5W @ 70V)

Crossover Frequency4.3 kHz

Transducers

LF Driver135 mm (5.25 in) low frequency driver

HF Driver19 mm (0.75 in) polycarbonate dome tweeter

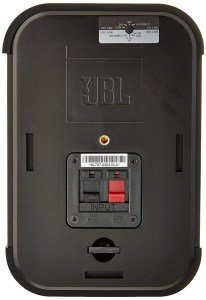

Input ConnectorsSpring-loaded terminals

Enclosure

Enclosure MaterialPolypropylene Structural Foam

ColorBlack

Dimensions229 mm x 159 mm x 143 mm

(9.0 in x 6.3 in x 5.6 in)

Net Weight (each)2.0 kg (4.5 lb)

Shipping Weight (pair)4.8 kg (10.5 lb)

Included AccessoriesWall-mounting bracket assembly
