JBL CSS8018 8 inç 10 Watt Tavan Hoparlörü 100V/70V/25V

Jbl CSS8018 8'' 70/100V Tavan Hoparlörü

200 mm (8 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Very high 97 dB sensitivity

10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines

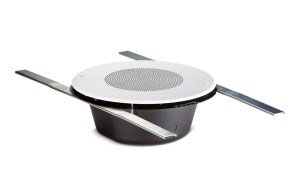

Fits CSS-BB8 backcan

Driver Size (dual-cone)200 mm (8 in)

Driver Sensitivity (mid-range)

(1W [2.83V], 1m, 2k – 6k Hz)97 dB

Frequency Range (-10 dB)

Driver/Grille Assembly50 Hz – 17 kHz

Installed in CSS-BB backcan90 Hz – 17 kHz

Coverage (2 kHz)110°

Driver Continuous Power Handling20 Watts

100V Taps10W, 5W, 2.5W

70V Taps10W, 5W, 2.5W, 1.3W

25V Taps10W, 5W, 2.5W, 1.3W

Transformer Insertion Loss1.5 dB Maximum

Transformer ConnectionBare wire

Motor Mass283 g (10 oz)

Safety AgencySuitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Matching CSS BackcanCSS-BB8 (0.15 cu ft)

Other Compatible BackcansMTC-81BB8 (0.26 cu ft)

MTC-200BB6 (0.5 cu ft)

MTC-300BB8 (1.0 cu ft)

Bolt Mounting Circle to Backcan4 points on 286 mm (11.25 in) diameter

Cutout Diameter

Open-back216 mm (8.5 in)

In CSS-BB backcan295 mm (11.7 in)

Depth (behind grille)73 mm (2.9 in)

Grille Diameter327 mm (12.9 in)

Net Weight (ea)1.58 kg (3.5 lb)

Shipping Weight (ea)2.25 kg (5.0 lb)

Included Accessories4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
