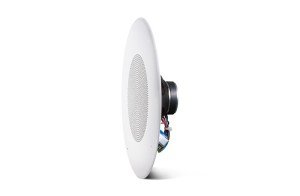

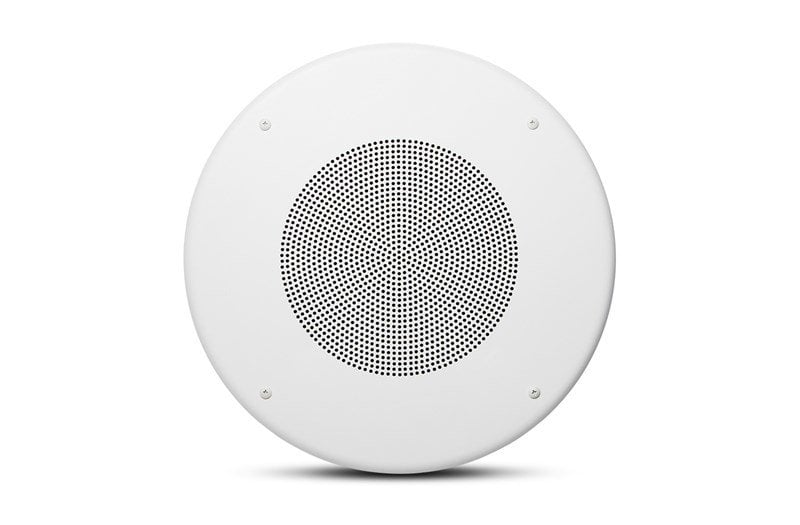

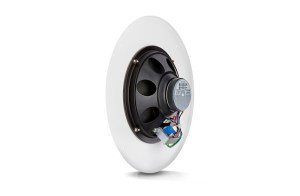

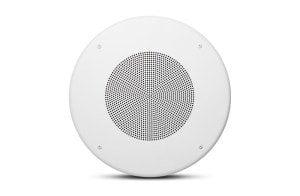

JBL CSS8008 - 8 inç 5 Watt Tavan Hoparlörü 100V/70V/25V

Jbl CSS8008 8" Commercial Series 100V 70V 25V Ceiling Speaker

High 96 dB sensitivity

5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines

120° conical coverage

Fits CSS-BB8 backcan

Driver Size (dual-cone)200 mm (8 in)

Driver Sensitivity (mid-range)

(1W [2.83V], 1m, 2k – 6k Hz)96 dB

Frequency Range (-10 dB)

Driver/Grille Assembly55 Hz – 16 kHz

Installed in CSS-BB backcan100 Hz – 16 kHz

Coverage (2 kHz)120°

Driver Continuous Power Handling15 Watts

100V Taps5W, 2.5W, 1.3W

70V Taps5W, 2.5W, 1.3W, 0.7W

25V Taps5W, 2.5W, 1.3W, 0.7W

Transformer Insertion Loss1.5 dB Maximum

Transformer ConnectionBare wire

Motor Mass200 g (7 oz)

Safety AgencySuitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70,

when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker.

Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Matching CSS BackcanCSS-BB8 (0.15 cu ft)

Other Compatible BackcansMTC-81BB8 (0.26 cu ft)

MTC-200BB6 (0.5 cu ft)

MTC-300BB8 (1.0 cu ft)

Bolt Mounting Circle to Backcan4 points on 286 mm

(11.25 in) diameter

Cutout Diameter

Open-back216 mm (8.5 in)

In CSS-BB backcan295 mm (11.7in)

Depth (behind grille)71 mm (2.8 in)

Grille Diameter327 mm (12.9 in)

Net Weight (ea)1.27 kg (2.8 lb)

Shipping Weight (ea)1.94 kg (4.3 lb)

Included Accessories4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan
