JBL CSS8004 - 4 inç 5 Watt Tavan Hoparlörü 100V/70V/25V

JBL CSS8004 - 4'' 5 Watt Tavan Hoparlörü

High 90 dB sensitivity

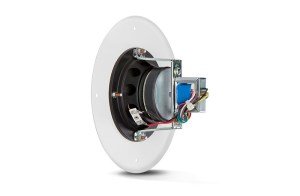

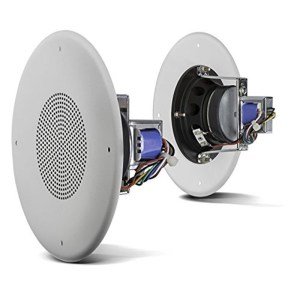

5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines

Very wide 175° coverage

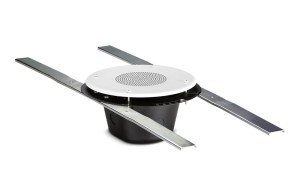

Fits CSS-BB4 backcan

Driver Size (dual-cone) 100 mm (4 in)

Driver Sensitivity (mid-range)

(1W [2.83V], 1m, 2k – 6k Hz) 90 dB

Frequency Range (-10 dB)

Driver/Grille Assembly 85 Hz – 18 kHz

Installed in CSS-BB backcan 130 Hz – 18 kHz

Coverage (2 kHz) 175°

Driver Continuous Power Handling 15 Watts

100V Taps 5W, 2.5W, 1.3W

70V Taps 5W, 2.5W, 1.3W, 0.7W

25V Taps 5W, 2.5W, 1.3W, 0.7W

Transformer Insertion Loss 1.5 dB Maximum

Transformer Connection Bare wire

Motor Mass 200 g (7 oz)

Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Matching CSS Backcan CSS-BB4

Other Compatible Backcans N/A

Bolt Mounting Circle to Backcan 4 points on 165 mm

(6.5 in) diameter

Cutout Diameter

Open-back 125 mm (5.0 in)

In CSS-BB backcan 170 mm (6.7 in)

Depth (behind grille) 94 mm (3.7 in)

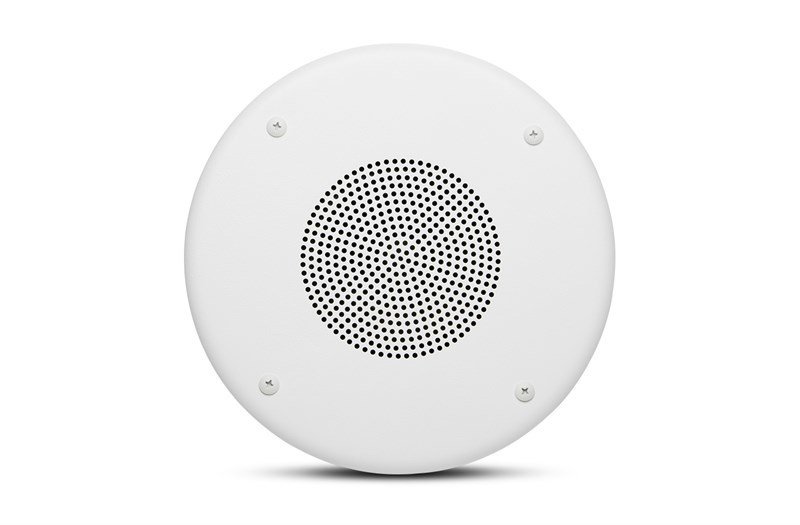

Grille Diameter 198 mm (7.8 in)

Net Weight (ea) 0.90 kg (1.0 lb)

Shipping Weight (ea) 1.26 kg (2.8 lb)

Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
