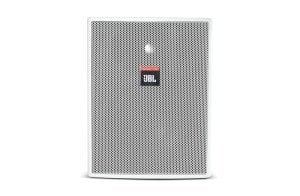

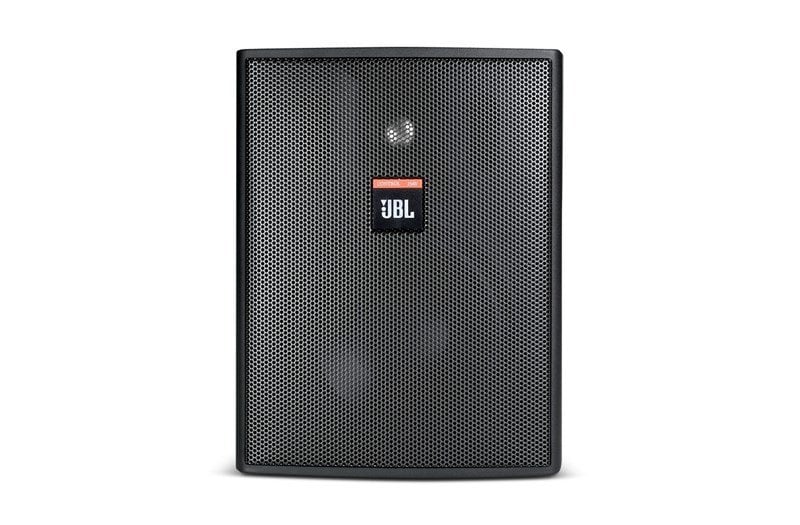

JBL Control 25AV 5.25'' 60 W 70/100V Kabin Hoparlör
Jbl Control 25AV 5.25'' 60 W 70/100V Kabin Hoparlör
Video shielded for use near video monitors.
Extremely smooth frequency response.
Stainless steel grill for harsh environments.
60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
SonicGuard™ overload protection.
130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
Includes InvisiBall® mounting hardware and sealed input panel cover.

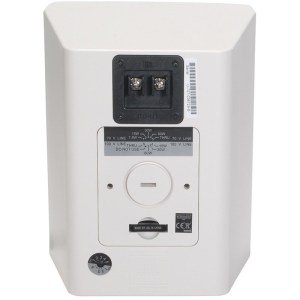

Screw-down input terminals.
100° x 100° high frequency horn.
Frequency Range70 Hz - 23 kHz (-10 dB)
Power Capacity200 W Continuous Program Power; 100 W Continuous Pink Noise
Transformer Taps70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W
Nominal Sensitivity87 dB SPL, 1 W @ 1 m (3.3 ft)
Midrange (±1.5 dB, typical)130 Hz - 14 kHz
Nominal Coverage100° x 100°
Maximum SPL @ 1m113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
Directivity Factor (Q)4.9 dB, averaged 500 Hz to 4 kHz
Directivity Index (DI)6.9 dB, averaged 500 Hz to 4 kHz
Nominal Impedance8 ohms
Minimum Impedance6.7 ohms at 230 Hz
Crossover NetworkSecond Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
Low Frequency130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency20 mm (.75 in) titanium coated PEI
Enclosure MaterialHigh Impact polystyrene
GrillePainted stainless steel, black or white to match cabinet, paintable
Overload ProtectionFull-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
TerminationsScrew-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency RatingTransformer is listed per UL1876
ColorsBlack or white (-WH)
RotationAgainst wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44°
all directions
Dimensions (H x W x D)236 x 186 x 159 mm
(9.3 x 7.4 x 6.3 in)
Net Weight (ea)4.0 kg (9 lb)
Shipping Weight (ea)9.0 kg (20 lb) per pair
Included Accessories1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
Optional AccessoriesMTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter.
