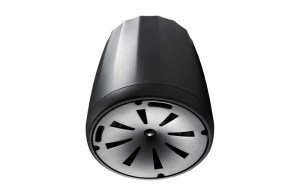

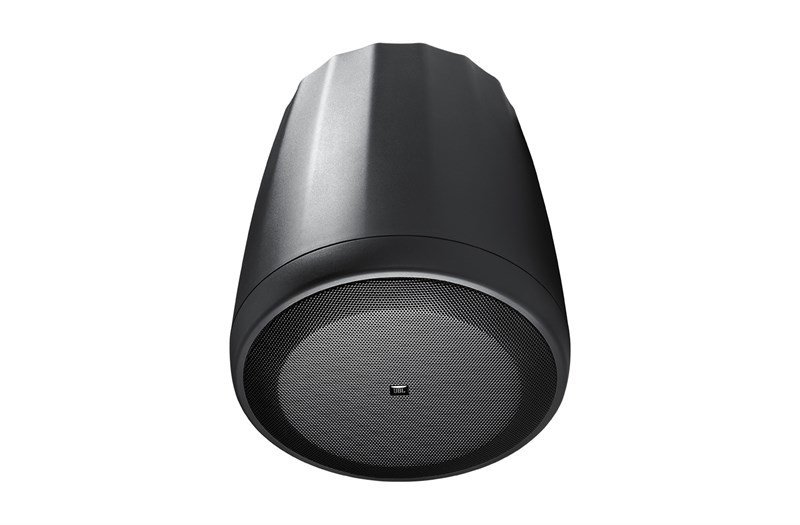

JBL C65P/T 5,25'' 75W 70/100V 8 ohm Sarkıt Tavan Hoparlörü

Jbl C65P/T 5,25'' 75W 70/100V 8 ohm Sarkıt Tavan Hoparlörü

RBI Radiation Boundary Integrator Technology

120° conical coverage

5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality

75 Watts, 8 ohms and 60W multi-tap transformer

Black or white

Frequency Response (-10 dB)55 Hz – 20 kHz

Frequency Range (±3 dB)78 Hz – 18 kHz

Power Capacity75 Watts Continuous Pink Noise Power (with 300 Watts peaks)

150 Watts Continuous Program Power

Nominal Sensitivity86 dB

Nominal Coverage Angle120° (+20°/-10°)

Directivity (Q)5.3

Directivity Index (DI)7.2 dB

Rated Maximum SPL @ 1m105 dB continuous pink noise, 111 dB peak

Rated Impedance8 ohms

Transformer Taps70V: 60W, 30W, 15W & 7.5W

100V: 60W, 30W, 15W

Transformer Insertion Loss0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W

LF Driver130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround,

25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former

HF Driver20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

Enclosure MaterialHigh impact polystyrene

GrilleZinc-plated steel grille with powder-coat finish, foam backing (removable

for painting)

EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

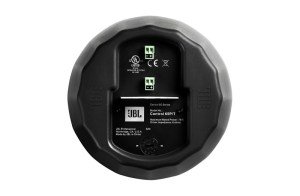

TerminationTwo removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

SuspensionTwo identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating

of 45 kg (99 lb).

Safety Agency RatingsSpeaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Dimensions234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.

Net Weight (ea)3.7 kg (8 lbs)

Shipping Weight (pair)8.7 kg (19 lbs)

Included AccessoriesTwo suspension cable systems (see "Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors

Optional AccessoriesMTC-PC60 top panel / terminal cover

ColorsAvailable in black or white (-WH). Paintable.
