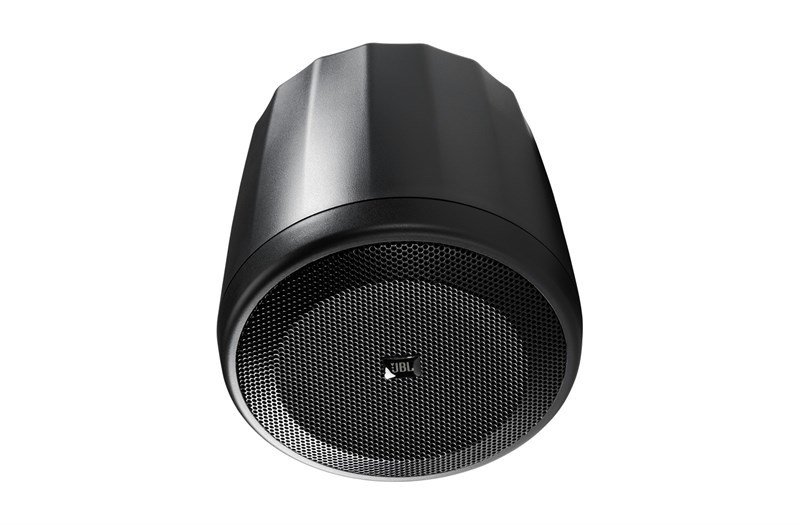

JBL C62P 2'' 20W Sarkıt Tip Tavan Hoparlörü
Jbl C62P 2'' 20W Sarkıt Tip Tavan Hoparlörü
Ultra-Compact Mid-High Satellite Pendant Speaker
Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.
2" (50 mm) driver
20 Watts, 16 ohms
Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
Black or white
Frequency Response (-10 dB)150 Hz – 20 kHz
Frequency Range (±3 dB)200 Hz – 17 kHz
Power Capacity50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)
30 Watts Continuous Program Power (100 hrs)
15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity87 dB (4.0 V, 1 W)
84 dB (2.83 V)
Nominal Coverage Angle140° (+25°/-50°)
Directivity (Q)4.7
Directivity Index (DI)6.2 dB
Rated Maximum SPL @ 1m97 dB continuous pink noise, 103 dB peak
Rated Impedance16 ohms (no transformer taps)
Recommended High-Pass Frequency150 Hz

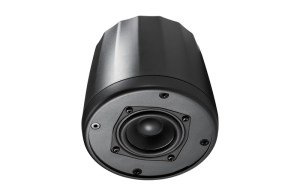

Transducer: Driver60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure MaterialHigh impact polystyrene
GrilleZinc-plated steel grille with powder-coat finish, foam backing (removable
for painting)
EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

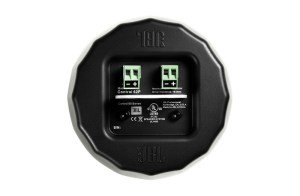

TerminationTwo removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
SuspensionTwo identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating
of 45 kg (99 lb).
Safety Agency RatingsSpeaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (ea)0.7 kg (1.5 lbs)
Shipping Weight (pair)2.0 kg (4.3 lbs)
Included AccessoriesTwo suspension cable systems (see "Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional AccessoriesMTC-PC62 top panel / terminal cover
ColorsAvailable in black or white (-WH). Paintable.
