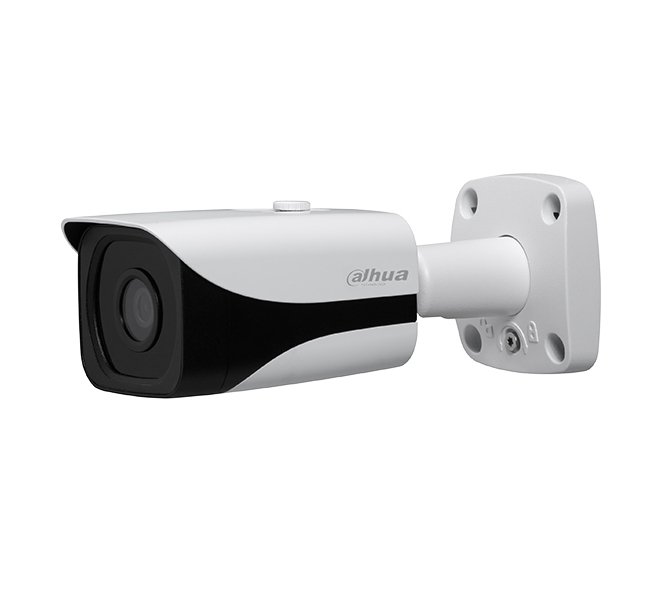

IPC-HFW4231EP-SE-0360B 2MP WDR IR Mini Bullet Network Camera

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.007Lux/F1.6( Color,1/3s,30IRE)

0.06Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 40m (131ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6mm

Max. Aperture

F1.6 (F1.6)

Angle of View

H: 87° (52°), V: 46° (30°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

1.2m(2.4m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

55m(180ft)

22m(72ft)

11m(36ft)

6m(20ft)

6.0 mm

83m(289ft)

33m(108ft)

17m(56ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920x1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P (1~50/60fps)

Sub Stream: D1(1~50/60fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)
