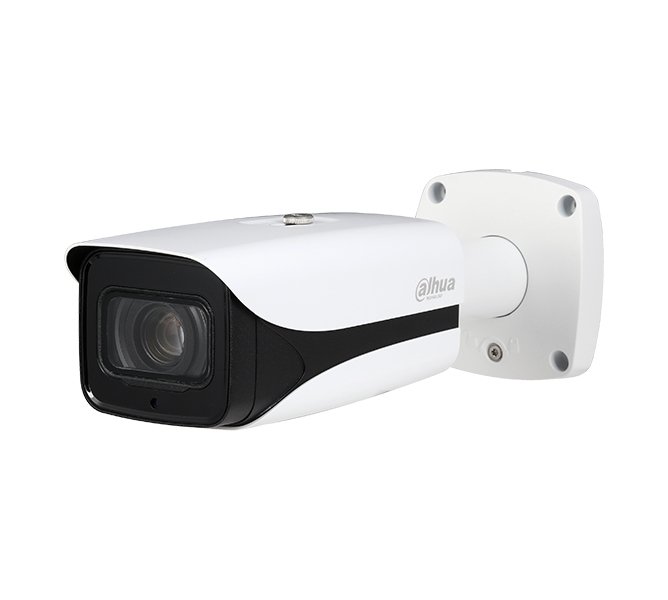

IPC-HFW4231E-Z-27135 2MP WDR IR Bullet Network Kamera

Kategori
Marka
Stok Kodu
MDL400055
Fiyat
0,00 TL + KDV
Teklif Alın
*
*
*
*
*
*

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@1080(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~13.5mm motorized lens
> 2/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50m
> Micro SD memory 256GB, IP67, IK10, PoE


Technıcal Specification

Camera H.265/H.264H/MJEG(Sub Stream)

Image Sensor

1/2.7” 2Megapixel progressive CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05 lx; f/1.8 (Color, 1/3 s,30IRE)
0.3 lx; f/1.8 (Color, 1/30 s,30IRE)
0 lx; f/1.8 (IR on)
S/N Ratio More than 40dB

IR Distance

Distance up to 40m(131ft)

IR On/Off Control

Auto/Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.8

Max. Aperture

f/1.8

Angle of View

H: 105°~33°, V: 56°~18°

Focus Control

Motorized

Close Focus Distance 0.2 m (0.66 ft)

DORI Distance

Lens Detect Observe Recognize Identify
W 44m 17.6m 8.8m 4.4m
T 133m 53m 27m 13m

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

Intelligence
Event Trigger
Motion detection, Video tampering , Network disconnection,
Scene change, IP address conflict, Illegal
Access, Storage anomaly
Video
Compression

H.265/H.264/H.264B/MJPEG (Sub Stream)

Smart Codec H.265+/H.264+
Streaming Capability 2 Streams
Resolution
1080P (1920×1080); 1.3 M (1280×960); 720P
(1280×720); VGA (640×480); D1 (704×576/704×480);
CIF (352×288/352×240)
Frame Rate
Main Stream: 1080P (1~25/30 fps)
Sub Stream: D1 (1~25/30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 16K~6144K H.265: 6K~6144K
Day/Night Auto (ICR)/Color/b/w
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP;
SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS;
UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP;
IGMP; TLS; SSH

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS (Network Attached Storage)
Local PC for instant recording
Micro SD Card 128 GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000)
UL:UL60950-1 FCC:
FCC Part 15 Subpart B

Electrical

Power Supply

DC 12 V, PoE (802.3af) (Class 0)

Power Consumption
DC 12 V: 1.8 W, 5.8 W (IR On)
PoE: 2.1 W, 6.7 W (IR On)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F)/Less than 95% RH

Strorage Conditions

-30°C ~ +60°C (-22°F ~ +140°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal+Plastic

Dimensions

243.6 × 90.7 × 90.2 mm (9.59 × 3.57 × 3.55”)

Net Weight 0.434 kg (0.957 lb)
Gross Weight 0.693 kg (1.53 lb)
