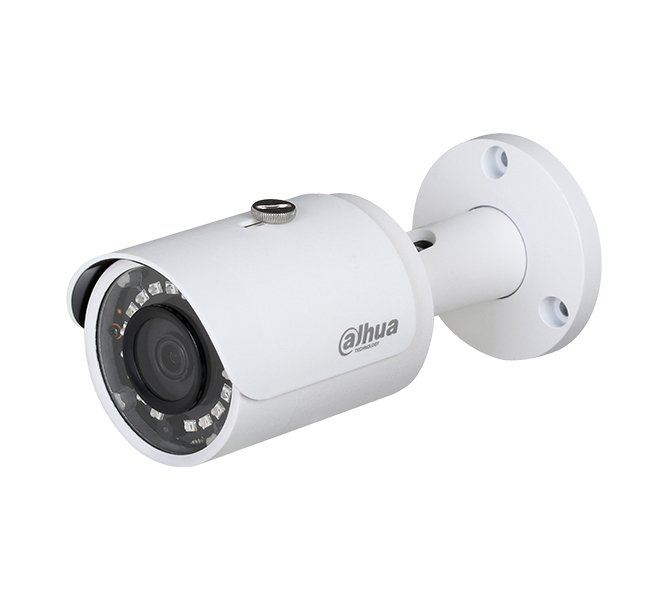

IPC-HFW1230SP-0360B 2MP IR Mini-Bullet Network Kamera

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

18

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6 mm

Max. Aperture

F2.0/F2.0

Angle of View

H:104°/92°,V:55°/50°

Focus Control

Fixed

Close Focus Distance

0.6m(0.9m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

40(131ft)

16(52ft)

8(26ft)

4(13ft)

3.6 mm

53(174ft)

21(69ft)

11(36ft)

5(16ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection,

IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 10240Kbps
