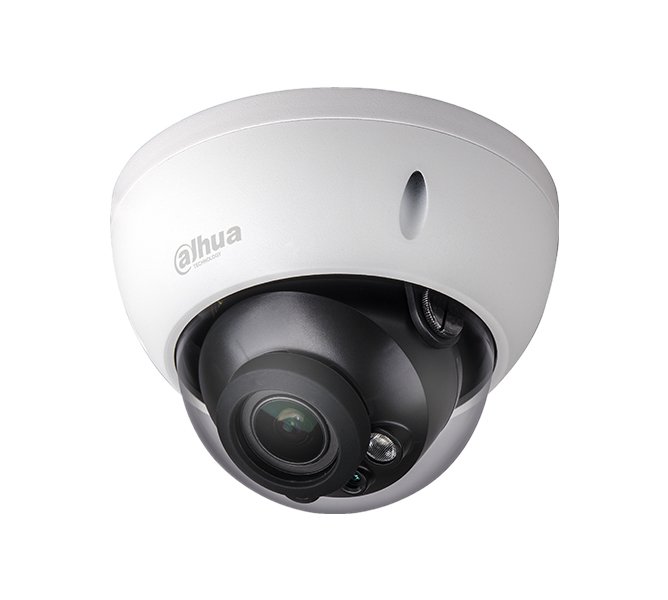

IPC-HDBW2231RP-ZAS-27135 2MP WDR IR Dome IP Kamera

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.006Lux/F1.4( Color,1/3s,30IRE)

0.05Lux/F1.4( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/Manual

IR LEDs

2

Lens

Lens Type

Motorized(-ZS),Manual(-VFS)

Mount Type

Board-in

Focal Length

2.7-13.5

Max. Aperture

F1.4

Angle of View

H:106°~29°, V:57°~17°

Focus Control

Motorized(-ZS),Manual(-VFS)

DORI Distance

15m(49ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,

Illegal acess,Storage anomaly

H.265/H.264H/MJPEG(Sub Stream)

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

H.265: 12K ~ 6400Kbps

H.264: 32K ~ 10240Kbps

64~384kbps(G.711A/G.711Mu)

40kbps(G.726)

16~96kbps(AAC)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)
