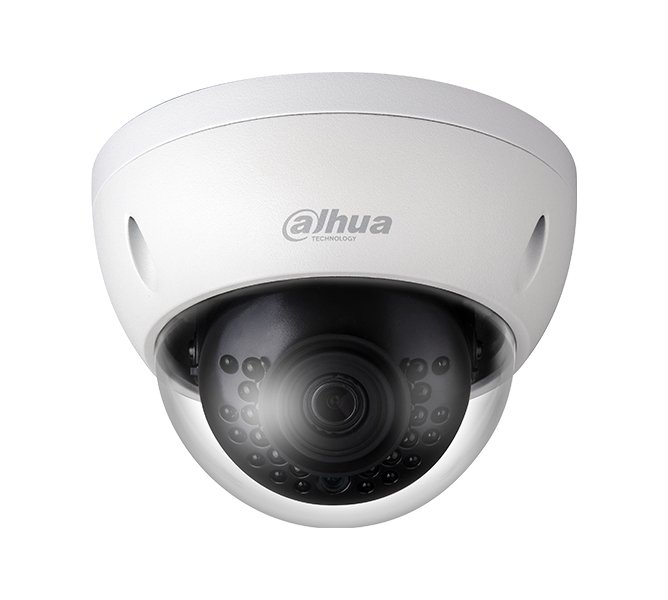

IPC-HDBW1231EP-S 2MP WDR IR Mini-Dome IP Kamera

Camera

Image Sensor

1/2.8” 2Megapixel progresive CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

24

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3mm, 6mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:105°/82°,V:59°/47°

Focus Control

Fixed

Close Focus Distance

0.6m(0.9m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

43.6m(143ft)

17.4m(57ft)

8.7m(28.5ft)

4.4m(14.4ft)

3.6mm

55.2m(181ft)

22.1m(72.5ft)

11m(36ft)

5.5m(18ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict,

Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/

D1(704x576/×704x480)/ VGA(640x480)/

CIF(352x288/352X240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265:12K~6400Kbps

H.264:32K~10240Kbps
