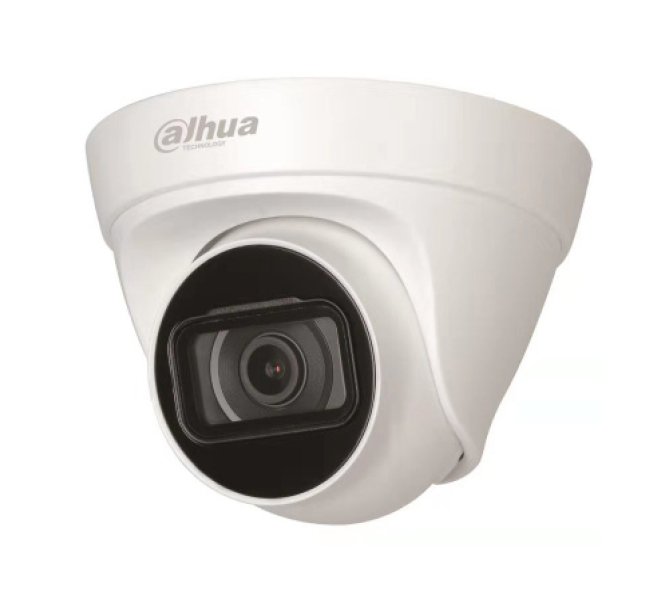

IPC-CT1C20-0360B 2MP IR Turret Network Kamera

Kategori
Marka
Stok Kodu
MDL400014
Fiyat
0,00 TL + KDV
Teklif Alın
*
*
*
*
*
*

1/2.7” 2 Megapixel progressive CMOS
H.265+ & H.265 dual-stream encoding
25/30 fps @ 1080P (1920×1080)
DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS (DSS/PSS)&DMSS
3.6 mm fixed lens
Max IR LEDs Length 30 m
IP67, PoE


Camera

Image Sensor

1/2.7” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.009Lux/F2.0( Color,1/3s,30IRE)
0.05Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6

Max. Aperture

F2.0/F2.0

Angle of View

H:115°/87.5°, V:60°/47°

Focus Control

Fixed

Close Focus Distance 0.5m(1.64ft)

DORI Distance

Lens Detect Observe Recognize Identify
2.8 mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft)
3.6 mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video
Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~5/0fps)
Bit Rate Control CBR/VBR
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;
NTP;Multicas; ICMP; IGMP

Interoperability

ONVIF Profile S

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

N/A

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption <4.8W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ109mm×85.5mm(4.29''x3.36'')

Net Weight 0.24Kg(0.53lb)
Gross Weight 0.36Kg(0.79lb)

Ordering Information

Type

Part Number

Description



2MP Camera

IPC-T1B20P-0280B
2MP IR turret Network Camera,
2.8mm,PALL
IPC-TB20N-0280B
2MP IR turret Network Camera,
2.8mm, NTSC
IPC-T1B20P-0360B
2MP IR turret Network Camera,
3.6mm,PAL
IPC-T1B20N-0360B
2MP IR turret Network Camera,
3.6mm,NTSC
Accessories
(optional)

PFA130-E

Junction box

PFA152-E

Pole mount
PFA151 Corner mount
PFB203W Wall mount
PFA106 Ceiling mount
PFB220C Ceiling mount
