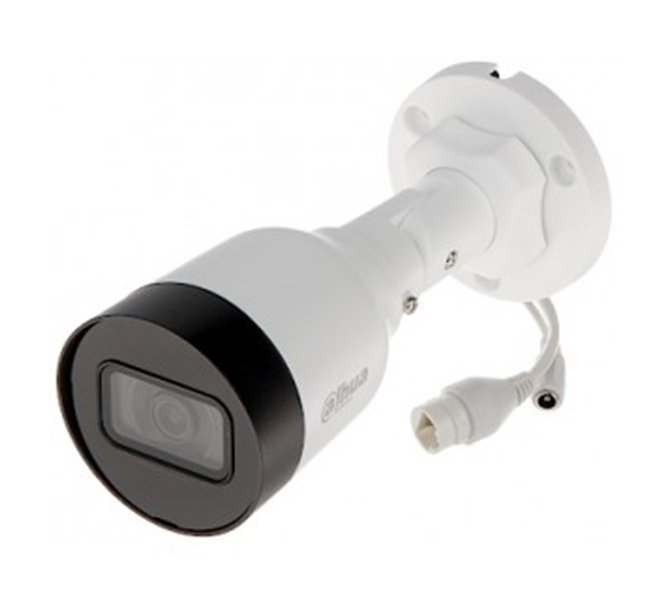

IPC-CB1C20-0360B 2MP IR Mini-Bullet Network Kamera

Kategori
Marka
Stok Kodu
MDL400034
Fiyat
0,00 TL + KDV
Teklif Alın
*
*
*
*
*
*

1/2.7” 2Megapixel progressive CMOS
H.265+ & H.265 dual-stream encoding
25/30fps@1080P(1920×1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens
Max IR LEDs Length 30m
IP67, PoE


Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m (98ft)

IR On/Off Control

Auto/Manual

IR LEDs

1

Lens

Focal Length

Fixed

Mount Type

Board-in

Focal Length

2.8

Max. Aperture

F2.0/F2.0

Angle of View

H:115°/87.5°, V:60°/47°

Focus Control

Fixed

Close Focus Distance 0.6m(1.97ft)

Dori Dıstance

Lens Detect Observe Recognize Identify
2.8mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft)
3.6mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability 2 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)//VGA(640×480)/
CIF(352×288/352×240)
Frame Rate

Main Stream: 1080P (1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control CBR/VBR
Bit Rate
H265:12K~6400K
H.264:32K ~8192K
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;
NTP;Multicas; ICMP; IGMP

Interoperability

ONVIF Profile S

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

N/A

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption <4.2W

Enviromental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Constrution

Casing

Metal+Plastic

Dimensions

Φ70mm×162.6mm(2.76''x6.49'')

Net Weight 0.22Kg(0.49lb)
Gross Weight 0.3Kg(0.66lb)

Ordering Information

Type

Part Number

Description



2MP Camera

IPC-B1B20P-0280B

2MP IR Mini-Bullet Network Camera,
2.8mm,PAL
IPC-B1B20N-0280B
2MP IR Mini-Bullet Network Camera,
2.8mm, NTSC
IPC-B1B20P-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,PAL
IPC-B1B20N-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,NTSC

Vandal Resistance

Casing

PFA134

Junction box

PFA152-E

Pole mount
PFA151 Corner mount
