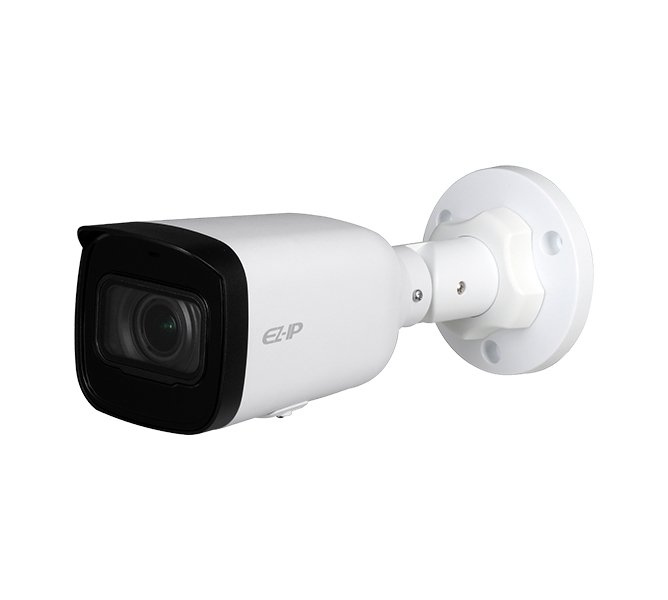

IPC-B2B20-ZS 2MP IR Mini-Bullet Network Kamera

> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8~12mm varifocal lens
> Max IR LEDs Length 40m
> Micro SD card memory, IP67, PoE

Camera

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.8( Color,1/3s,30IRE) 0.3Lux/F1.8( Color,1/30s,30IRE) 0Lux/F1.8(IR on)

S/N Ratio

More than 40dB

IR Distance

Distance up to 40m(131ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.8mm~12mm

Max. Aperture

F1.8

Angle of View

H:105°~33°, V:56°~18°

Focus Control

Motorized

Close Focus Distance

0.2m(0.66ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44m(144.4ft)

17.6m(57.7ft)

8.8m(28.9ft)

4.4m(14.4ft)

T

133m(436.4ft)

53m(173.9ft)

27m(88.6ft)

13m(42.7ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering , Network disconnection, IP address conflict, Illegal Access,Storage anomaly

Video

Compression

H.265/H.264/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 16K~6144K H.265: 6K~ 6144K

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;FTP;DHCP;DNS;IPV4;NTP;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage) Local PC for instant recording Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

DC12V: 1.8W, 5.8W(IR On) PoE: 2.1W, 6.7W(IR On)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

243.6mm×90.7mm×90.2mm (9.59”×3.57”×3.55”)

Net Weight

0.434Kg(0.957lb)

Gross Weight

0.693Kg(1.53b)
