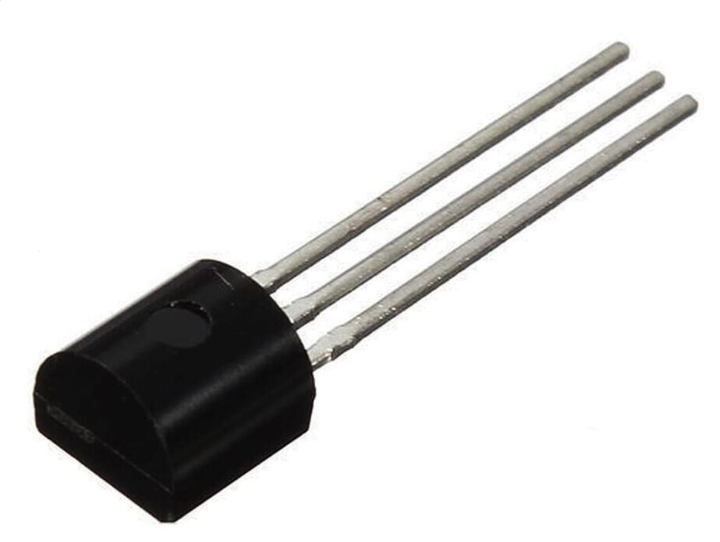

BF198 Transistör NPN-N-Channel Transistor TO-92

BF198 Transistör NPN-N-Channel Transistor TO-92

Type Designator: BF198

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 30 V

Maximum Emitter-Base Voltage |Veb|: 4 V

Maximum Collector Current |Ic max|: 0.025 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 0.4 pF

Forward Current Transfer Ratio (hFE), MIN: 27

Noise Figure, dB: -

Package: TO-92
