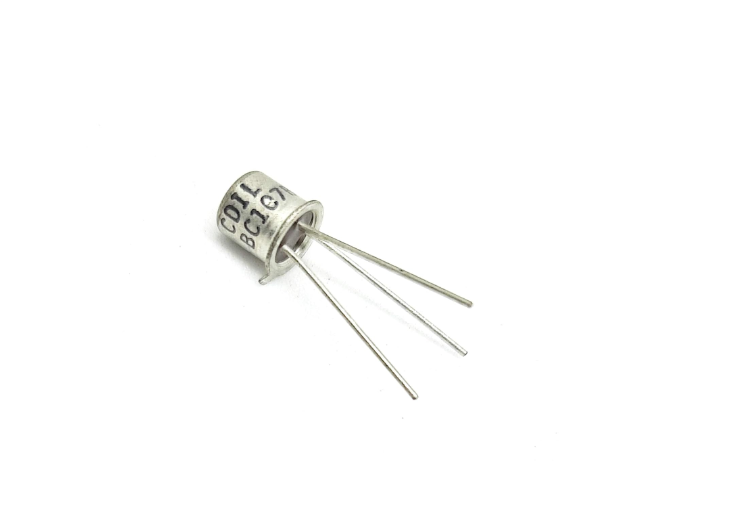

BC107B, BC107, TO-18 Transistör

BC107 Transistör NPN TO-18

BC107 DATA SHEET

Type Designator: BC107

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 110

Noise Figure, dB: -

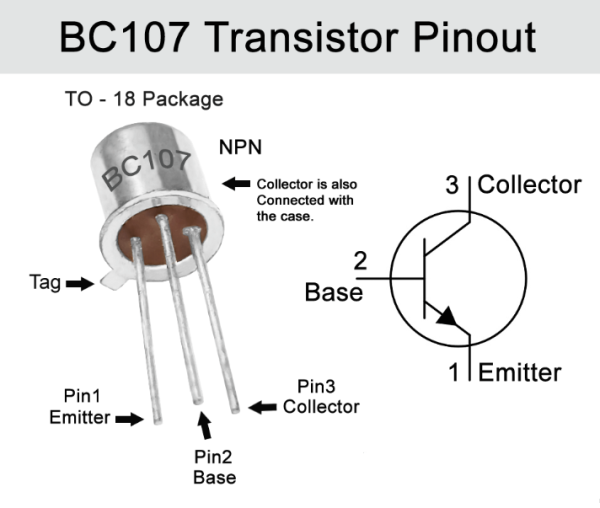

Package: TO18
